XPeng MONA M03 2025 Model 515 Long Range Plus
XPeng MONA M03 2025 Model 620 Ultra-Long Range Plus
XPeng MONA M03 2025 Model 502 Long Range Max
XPeng MONA M03 2025 Model 600km Super Long Range Max
Manufacturers
XPeng Motors
XPeng Motors
XPeng Motors
XPeng Motors
level
compact car
compact car
compact car
compact car
Energy type
pure electric
pure electric
pure electric
pure electric
Launch date
2025.05
2025.05
2025.05
2025.05
CLTC pure electric range (km)
515
620
502
600
Battery fast charging time (hours)
0.43
0.43
0.43
0.43
Battery fast charging range (%)
30-80
30-80
30-80
30-80
Maximum power (kW)
140
160
140
160
Maximum torque (N·m)
225
250
225
250
Body structure
5-door, 5-seater hatchback
5-door, 5-seater hatchback
5-door, 5-seater hatchback
5-door, 5-seater hatchback
Electric motor (Ps)
190
218
190
218
Length * Width * Height (mm)
4780*1896*1445
4780*1896*1445
4780*1896*1445
4780*1896*1445
Official 0-100km/h acceleration (s)
7.8
7.4
7.8
7.4
Maximum speed (km/h)
155
170
155
170
Electricity-equivalent fuel consumption (L/100km)
1.34
1.34
1.37
1.37
Whole vehicle warranty
Five years or 120,000 kilometers
Five years or 120,000 kilometers
Five years or 120,000 kilometers
Five years or 120,000 kilometers
Curb weight (kg)
1661
1739
1661
1739
Maximum load capacity (kg)
2036
2114
2036
2114
Length (mm)
4780
4780
4780
4780
Width (mm)
1896
1896
1896
1896
Height (mm)
1445
1445
1445
1445
Wheelbase (mm)
2815
2815
2815
2815
Front track width (mm)
1628
1628
1628
1628
Rear track width (mm)
1628
1628
1628
1628
Approach angle (°)
12
12
12
12
Departure angle (°)
17
17
17
17
Minimum turning radius (m)
5.3
5.3
5.3
5.3
Body structure
hatchback
hatchback
hatchback
hatchback
Car door opening method
Hinged door
Hinged door
Hinged door
Hinged door
Trunk volume (L)
600-1600
600-1600
600-1600
600-1600
Drag coefficient (Cd)
0.194
0.194
0.194
0.194
Previous electric motor brand
Suzhou Huichuan
FrieslandCampina
Suzhou Huichuan
FrieslandCampina
Front motor model
TZ180XS120
TZ190XS01D01X
TZ180XS120
TZ190XS01D01X
Motor type
Permanent magnet/synchronous
Permanent magnet/synchronous
Permanent magnet/synchronous
Permanent magnet/synchronous
Total power of electric motors (kW)
140
160
140
160
Total horsepower of electric motors (Ps)
190
218
190
218
Total torque of the electric motor (N·m)
225
250
225
250
Maximum power of the front motor (kW)
140
160
140
160
Maximum torque of the front motor (N·m)
225
250
225
250
Number of drive motors
single motor
single motor
single motor
single motor
Motor layout
Front
Front
Front
Front
Warranty for the three electric systems
Eight years or 160,000 kilometers
Eight years or 160,000 kilometers
Eight years or 160,000 kilometers
Eight years or 160,000 kilometers
Battery Type
Lithium iron phosphate batteries
Lithium iron phosphate batteries
Lithium iron phosphate batteries
Lithium iron phosphate batteries
Battery proprietary technology
Blade Battery
Blade Battery
Blade Battery
Blade Battery
Battery cooling method
Liquid cooling
Liquid cooling
Liquid cooling
Liquid cooling
CLTC pure electric range (km)
515
620
502
600
Battery energy (kWh)
51.8
62.2
51.8
62.2
Energy consumption per 100 kilometers (kWh/100km)
11.5
11.5
11.8
11.8
Fast charging function
support
support
support
support
Battery fast charging time (hours)
0.43
0.43
0.43
0.43
Battery fast charging range (%)
30-80
30-80
30-80
30-80
slow charging port location
Left rear side of the car
Left rear side of the car
Left rear side of the car
Left rear side of the car
Fast charging port location
Left rear side of the car
Left rear side of the car
Left rear side of the car
Left rear side of the car
External AC discharge power (kW)
3.3
3.3
3.3
3.3
Transmission type
Fixed gear ratio gearbox
Fixed gear ratio gearbox
Fixed gear ratio gearbox
Fixed gear ratio gearbox
driving method
Front-engine, front-wheel drive
Front-engine, front-wheel drive
Front-engine, front-wheel drive
Front-engine, front-wheel drive
Front suspension type
MacPherson independent suspension
MacPherson independent suspension
MacPherson independent suspension
MacPherson independent suspension
Rear suspension type
Torsion beam non-independent suspension
Torsion beam non-independent suspension
Torsion beam non-independent suspension
Torsion beam non-independent suspension
Vehicle body structure
Load-bearing
Load-bearing
Load-bearing
Load-bearing
Front tire specifications
215/50 R18
235/40 R19 (4000 yuan)
215/50 R18
235/40 R19 (4000 yuan)
215/50 R18
235/40 R19 (4000 yuan)
215/50 R18
235/40 R19 (4000 yuan)
Spare tire specifications
Driver/passenger airbags
host/ Deputy
host/ Deputy
host/ Deputy
host/ Deputy
Front/Rear Side Airbags
forward/ back-
forward/ back-
forward/ back-
forward/ back-
Front/rear head airbags (curtains)
forward/ back
forward/ back
forward/ back
forward/ back
ABS anti-lock braking system
Brakeforce Distribution (EBD/CBC, etc.)
Brake assist (EBA/BAS/BA, etc.)
Traction control (ASR/TCS/TRC, etc.)
Vehicle stability control (ESC/ESP/DSC, etc.)
Tire pressure monitoring function
ISOFIX child seat anchors
Lane departure warning system
Active braking/active safety system
Fatigue driving warning
-
-
Forward Collision Warning
Sentinel Mode / Clairvoyance
Driving mode switching
sports
economy
Standard/Comfort
sports
economy
Standard/Comfort
sports
economy
Standard/Comfort
sports
economy
Standard/Comfort
Front/Rear Parking Radar
forward/ back
forward/ back
forward/ back
forward/ back
Driving assistance imaging
360-degree panoramic imaging
Blind spot camera
360-degree panoramic imaging
Blind spot camera
360-degree panoramic imaging
Blind spot camera
360-degree panoramic imaging
Blind spot camera
Transparent chassis/540-degree imaging
Total computing power of the chip
-
-
Number of in-car cameras
-
-
Number of ultrasonic radars
Number of millimeter-wave radars
Cruise system
Full-speed adaptive cruise control
Full-speed adaptive cruise control
Full-speed adaptive cruise control
Full-speed adaptive cruise control
Rear Cross Traffic Alert System
Satellite navigation system
Navigation traffic information display
High-precision positioning
-
-
Road traffic sign recognition
-
-
Automatic exit (entry) from auxiliary ramps
-
-
Traffic light recognition
-
-
Steering wheel off-hand detection
-
-
Assisted driving section
-
-
urban road sections
highway section
urban road sections
highway section
Electric tailgate position memory
Key type
Bluetooth key
NFC/RFID Key
Bluetooth key
NFC/RFID Key
Bluetooth key
NFC/RFID Key
Bluetooth key
NFC/RFID Key
Hidden electric door handle
LED daytime running lights
Adaptive high and low beam
Headlight height adjustable
Headlights delayed shut off
Skylight type
Non-openable panoramic sunroof
Non-openable panoramic sunroof
Non-openable panoramic sunroof
Non-openable panoramic sunroof
Front/Rear Power Windows
forward/ back
forward/ back
forward/ back
forward/ back
One-touch window lift function
Anti-pinch function for car windows
Car vanity mirror
Driver's side + lights
Passenger side + lights
Driver's side + lights
Passenger side + lights
Driver's side + lights
Passenger side + lights
Driver's side + lights
Passenger side + lights
Rain-sensing wiper function
Exterior rearview mirror function
Electric adjustment
Electric folding
Rearview mirror memory
Heated rearview mirrors
Automatic tilting when reversing
Automatic folding when locking
Electric adjustment
Electric folding
Rearview mirror memory
Heated rearview mirrors
Automatic tilting when reversing
Automatic folding when locking
Electric adjustment
Electric folding
Rearview mirror memory
Heated rearview mirrors
Automatic tilting when reversing
Automatic folding when locking
Electric adjustment
Electric folding
Rearview mirror memory
Heated rearview mirrors
Automatic tilting when reversing
Automatic folding when locking

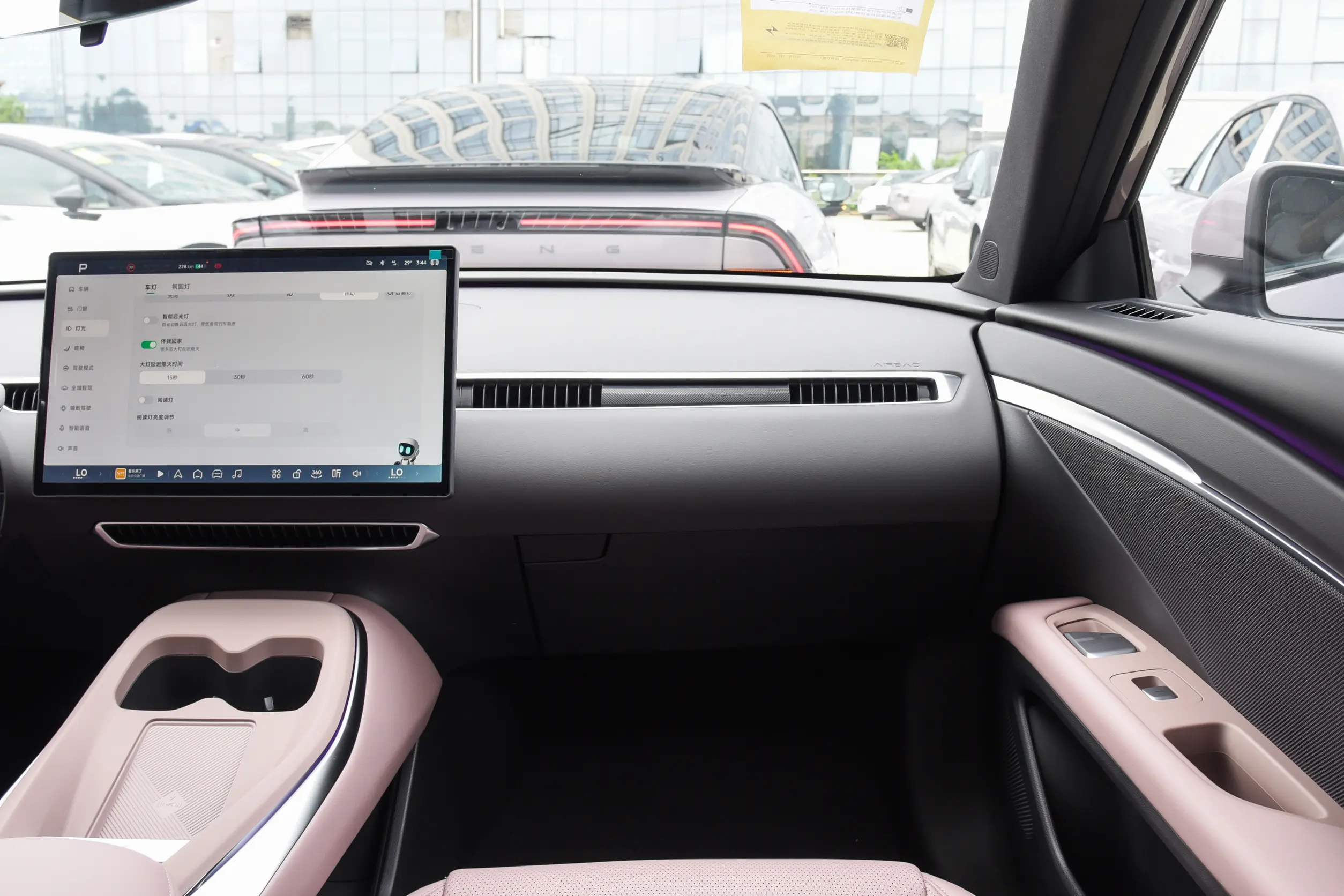

Central control color screen
Central control screen size
Mobile phone interconnection/mapping
Supports HUAWEI HiCar
Carlink supported
Supports HUAWEI HiCar
Carlink supported
Supports HUAWEI HiCar
Carlink supported
Supports HUAWEI HiCar
Carlink supported
Voice recognition control system
Multimedia system
navigation
Telephone
air conditioner
Car window
Seat heating
Seat ventilation
Seat massage
Multimedia system
navigation
Telephone
air conditioner
Car window
Seat heating
Seat ventilation
Seat massage
Multimedia system
navigation
Telephone
air conditioner
Car window
Seat heating
Seat ventilation
Seat massage
Multimedia system
navigation
Telephone
air conditioner
Car window
Seat heating
Seat ventilation
Seat massage
Voice assistant wake word
Voice regional wake-up recognition
Continuous speech recognition
What is visible can be said
In-vehicle intelligent system
In-vehicle smart chip
Qualcomm Snapdragon 8155P
Qualcomm Snapdragon 8155P
Qualcomm Snapdragon 8155P
Qualcomm Snapdragon 8155P
Vehicle infotainment system memory (GB)
Vehicle infotainment system storage (GB)
Intelligent configuration
Mobile APP remote function
Door control
Window control
Charging Management
Headlight control
Air conditioning control
Vehicle condition check/diagnosis
Vehicle location/car finding
Car owner services (finding charging stations, gas stations, parking lots, etc.)
Schedule maintenance/repair
Door control
Window control
Charging Management
Headlight control
Air conditioning control
Vehicle condition check/diagnosis
Vehicle location/car finding
Car owner services (finding charging stations, gas stations, parking lots, etc.)
Schedule maintenance/repair
Door control
Window control
Charging Management
Headlight control
Air conditioning control
Vehicle condition check/diagnosis
Vehicle location/car finding
Car owner services (finding charging stations, gas stations, parking lots, etc.)
Schedule maintenance/repair
Door control
Window control
Charging Management
Headlight control
Air conditioning control
Vehicle condition check/diagnosis
Vehicle location/car finding
Car owner services (finding charging stations, gas stations, parking lots, etc.)
Schedule maintenance/repair
Steering wheel/rearview mirror
Steering wheel position adjustment
Manual up/down and forward/backward adjustment
Manual up/down and forward/backward adjustment
Manual up/down and forward/backward adjustment
Manual up/down and forward/backward adjustment
Gear shifting
Electronic column shifter
Electronic column shifter
Electronic column shifter
Electronic column shifter
Multi-function steering wheel
Steering wheel memory
-
-
-
-
Onboard computer display screen
Full LCD instrument panel
-
-
-
-
Interior rearview mirror function
Number of USB/Type-C ports
3 in the front row / 2 in the back row
3 in the front row / 2 in the back row
3 in the front row / 2 in the back row
3 in the front row / 2 in the back row
USB/Type-C maximum charging power
Wireless charging function for mobile phones
Driver's seat adjustment method
Adjusting forward and backward
Backrest adjustment
Height adjustment (2-way)
Lumbar support (4-way)
Adjusting forward and backward
Backrest adjustment
Height adjustment (2-way)
Lumbar support (4-way)
Adjusting forward and backward
Backrest adjustment
Height adjustment (2-way)
Lumbar support (4-way)
Adjusting forward and backward
Backrest adjustment
Height adjustment (2-way)
Lumbar support (4-way)
Passenger seat adjustment method
Adjusting forward and backward
Backrest adjustment
Adjusting forward and backward
Backrest adjustment
Adjusting forward and backward
Backrest adjustment
Adjusting forward and backward
Backrest adjustment
Power-adjustable driver and passenger seats
host/ Deputy
host/ Deputy
host/ Deputy
host/ Deputy
Front seat functions
heating
ventilation
Massage (driver's seat only)
heating
ventilation
Massage (driver's seat only)
heating
ventilation
Massage (driver's seat only)
heating
ventilation
Massage (driver's seat only)
Electric seat memory function
Driver's seat
Passenger seat
Driver's seat
Passenger seat
Driver's seat
Passenger seat
Driver's seat
Passenger seat
Adjustable buttons for the rear passenger seat
-
-
-
-
Second row seat adjustment
-
-
-
-
Front/Rear Center Armrest
forward/ back-
forward/ back-
forward/ back-
forward/ back-
Number of speakers
7 speakers
18 speakers (4000 yuan)
7 speakers
18 speakers (4000 yuan)
7 speakers
18 speakers (4000 yuan)
7 speakers
18 speakers (4000 yuan)
Ambient lighting in car interior
Air conditioner/refrigerator
Air conditioning temperature control methods
Automatic air conditioning
Automatic air conditioning
Automatic air conditioning
Automatic air conditioning
Rear independent air conditioning
-
-
-
-
PSS Premium Custom Speaker and Audio Upgrade Kit
PSS High-End Custom Speaker System (18 speakers) - 4 tweeters - 3 midrange speakers - 6 surround speakers - 4 woofers, 1 subwoofer - 1 independent amplifier 7.1.4 channel surround sound (with overhead channels)Optional equipment (4000 yuan)
PSS High-End Custom Speaker System (18 speakers) - 4 tweeters - 3 midrange speakers - 6 surround speakers - 4 woofers, 1 subwoofer - 1 independent amplifier 7.1.4 channel surround sound (with overhead channels)Optional equipment (4000 yuan)
PSS High-End Custom Speaker System (18 speakers) - 4 tweeters - 3 midrange speakers - 6 surround speakers - 4 woofers, 1 subwoofer - 1 independent amplifier 7.1.4 channel surround sound (with overhead channels)Optional equipment (4000 yuan)
PSS High-End Custom Speaker System (18 speakers) - 4 tweeters - 3 midrange speakers - 6 surround speakers - 4 woofers, 1 subwoofer - 1 independent amplifier 7.1.4 channel surround sound (with overhead channels)Optional equipment (4000 yuan)
